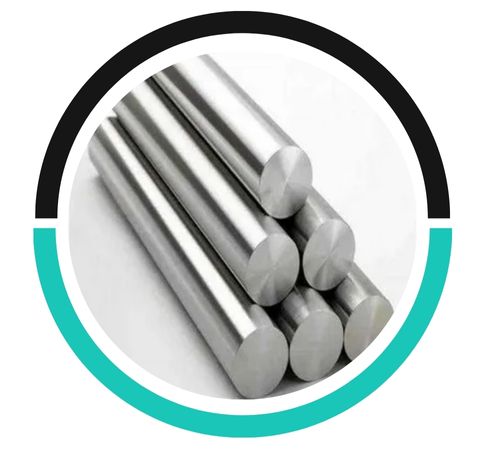

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a reputation as a trusted partner in the metals industry. We are proud to supply high-performance Titanium Grade 9 Bars and Rods, catering to clients who demand nothing short of excellence. Our commitment goes beyond just supply; we provide reliable materials and the technical support necessary for your most ambitious projects, ensuring success in even the most demanding environments.
Titanium Grade 9, also known as Ti 3-2.5, is a unique alloy containing 3% aluminum and 2.5% vanadium. This specific composition enhances its strength and stability compared to commercially pure titanium. It offers an excellent balance of good weldability, respectable toughness, and superior strength, especially at moderate temperatures. You’ll find it works beautifully in situations that demand a reliable and resilient metal without the weight penalty.
| Grade | GRADE 9 TITANIUM ROUND BAR |
|---|---|

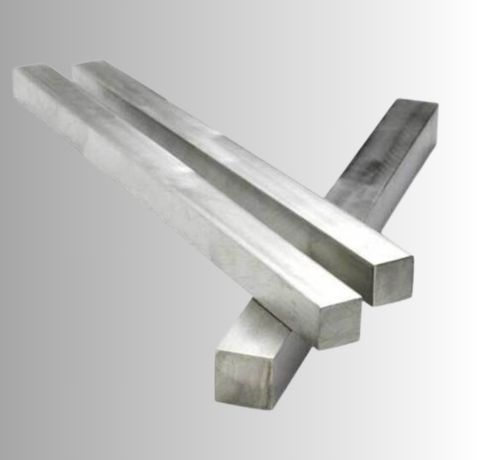

| Grade 9 Titanium Square bar size | 4 to 100mm |

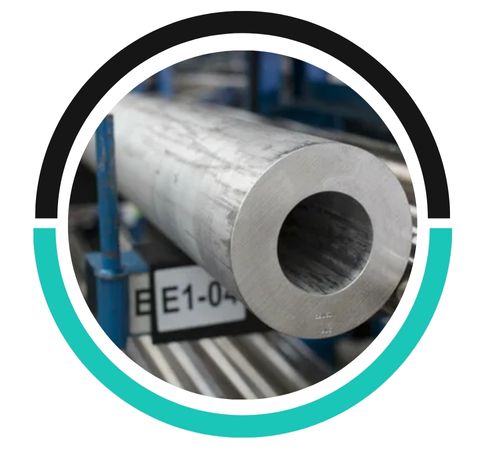

| Titanium Grade 9 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

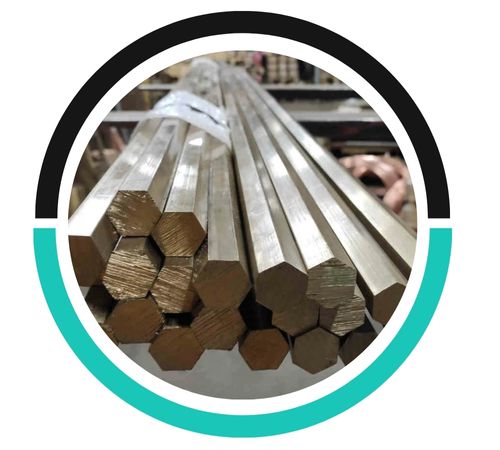

| Grade 9 Titanium Alloy Hex Bar size | 2-100mm A/F |
| Grade 9 Titanium Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

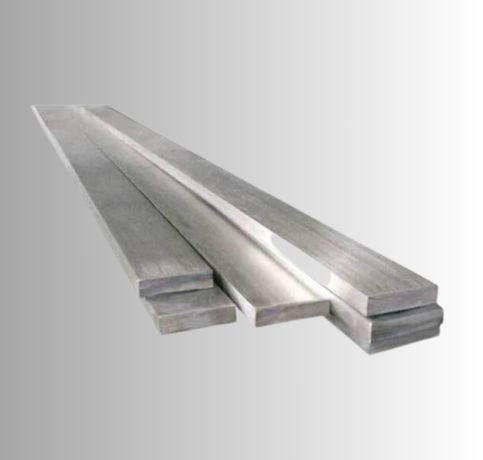

| Titanium Grade 9 Rectangles Size | 33 x 30mm to 295 x 1066mm |

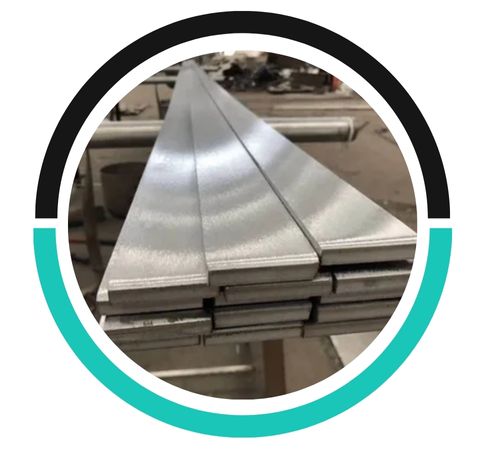

| Grade 9 Titanium Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Grade 9 Titanium Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Grade 9 Section | 3.0 to 12.0mm thickness |

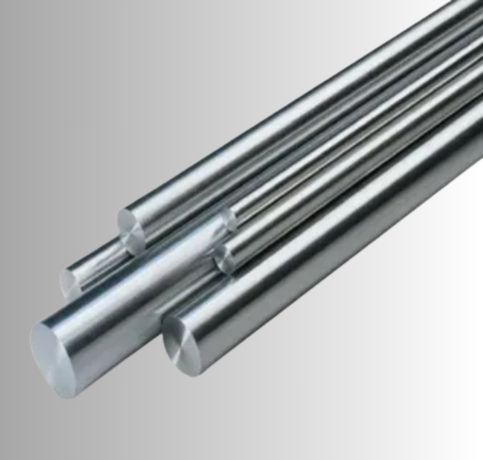

| Grade 9 Titanium Alloy Round bar size | Diameter: 3-~800mm |
| Grade 9 Titanium Billet Size | 1/2″ to 495mm Diameter |
| Titanium Grade 9 Round Bar Standard Dimensions | Diameter / Height: |
| Grade 9 Titanium Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Grade 9 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Grade 9 Titanium Alloy Technique | Grade 9 Titanium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Grade 9 Titanium Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

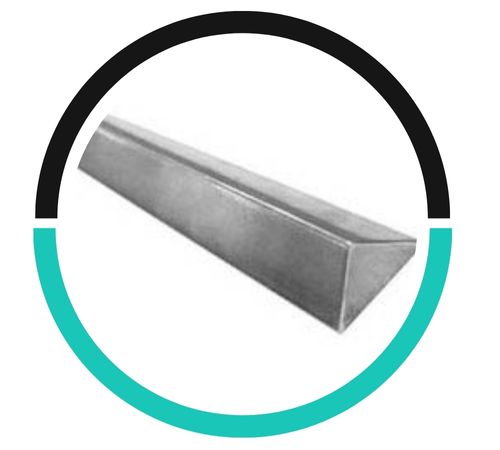

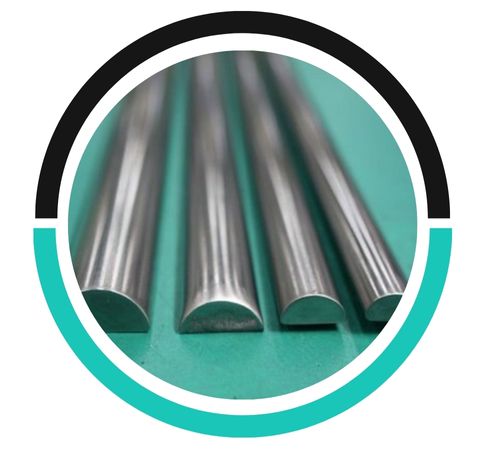

| Form | Grade 9 Titanium Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Grade 9 Titanium Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 9 | 3.7195 | R56320 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 620 | 520 | 15 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.48 g/cc | 0.162 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 9 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@nimishmetal.com
Yes, Titanium Grade 9 Bars and Rods are suitable for hygienic and sanitary applications due to their excellent corrosion resistance, non-reactivity, and ability to withstand high temperatures, ensuring safety and durability.
You’ll often find our Titanium Grade 9 Bars and Rods hard at work in aerospace components, where their strength-to-weight ratio is invaluable for airframes and engine parts. They’re also a perfect fit for chemical processing equipment, marine applications, and even high-performance automotive systems. Essentially, any project that requires a material that can handle stress, heat, and corrosive environments without being overly heavy is a perfect match for the versatile performance of Grade 9.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
