Based in Safat, Kuwait we pride ourselves on our expertise in the manufacture and supply of Monel Rectangular Bars at Nimish Metals. Monel known for its exceptional corrosion resistance, provides superior strength and durability in challenging environments, making it an ideal choice for demanding applications. Our Monel Rectangular Bars are available in a range of grades and dimensions to meet the needs of industries such as marine, chemical processing, aerospace and oil and gas. These bars are recognized for their versatility and high performance, excelling in applications that require both corrosion resistance and high strength. We ensure each Monel Rectangular Bar meets the highest industry standards for reliability and performance.
Monel rectangular bars are solid, flat sections of the Monel alloy known for its high strength, corrosion resistance at elevated temperatures, and harsh environments. These products find use in the marine industry, aerospace industries, chemical processing, and right from oil and gas. Generally, Monel rectangular bars contain 63% nickel and 28-34% copper, besides small quantities of iron, manganese, carbon, and silicon. This unique composition makes Monel very resistant to seawater corrosion, acidic environments, and extreme temperatures, qualifying it for applications where strength, durability, and dependability are required in challenging situations.
| Monel Rectangular Bar Standard | ASTM B164, ASTM B865, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Monel Rectangular Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Alloy Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Monel Rectangular Size | 33 x 30mm to 295 x 1066mm |
| JIS NW Rectangular-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Monel Rectangular Bars Condition | Hardened & tempered, annealed |
| Type Cold Rolled Retangular Bar Technique | Alloy Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Monel Alloy Rod Processing | Bar cutting to 650mm |
| Element | Max | Min |
| Ni | – | 63.0 |
| Fe | 1.0 – 2.5 | – |
| C | 0.3 | – |
| Mn | 2.0 | – |
| Si | 0.5 | – |
| Cu | 28.0 – 34.0 | – |
| Al | 0.50 | – |
| S | 0.02 | – |
| Element | Monel |
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 35,000 , MPa – 240 |
| Elongation | 40 % |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@nimishmetal.com

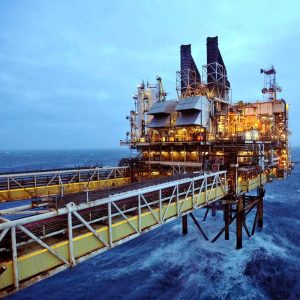

Monel Rectangular Bars are used in the oil and gas industry for manufacturing components such as piping, valves, and heat exchangers, where resistance to corrosion and high pressure is critical.
Monel Rectangular Bars maintain excellent strength and stability in high-temperature environments, making them suitable for use in heat exchangers, reactors, and other high-heat industrial applications.
Monel Alloy Rectangular Bars are used in many industries because of their ability to withstand very corrosive environments. They are mechanical parts producing within the marine industry, for instance, propeller shafts, seawater valves, and pumps. Reactors, heat exchangers, and some valve bits are goods in the chemical processing industry that are made of Monel due to its capacities against acids and alkalis. Engine parts and their associated fasteners include Monel Rectangular Bars in aerospace applications. Offshore platforms’ drilling equipment also uses Monel rectangular bars in the oil and gas segment. The robustness and flexibility of this is highly appropriate for many applications that experience high stresses in corrosive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
