Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has become a trusted name for those who demand uncompromising quality in their materials. We specialize in providing superior Hastelloy bars and rods, engineered for the most challenging environments. Our commitment goes beyond mere supply; we partner with our clients, offering reliable inventory and expert guidance to ensure their projects are built on a foundation of exceptional strength and corrosion resistance, right here in Kuwait.
The true strength of our Hastelloy bars lies in their sophisticated composition, primarily a nickel-chromium-molybdenum alloy. This unique blend grants them outstanding mechanical properties, including high tensile strength and remarkable toughness, even at elevated temperatures. They are specifically designed to maintain their structural integrity and resist deformation under intense stress, making them a fundamentally robust choice for heavy-duty industrial applications.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

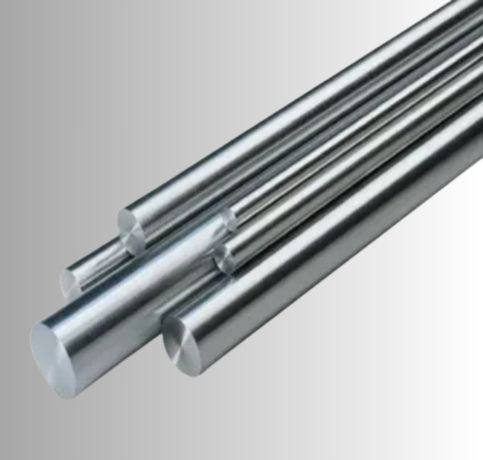

| Hastelloy Round Bar size | Diameter: 3-~800mm |
| Hastelloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hastelloy Bar Angle size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

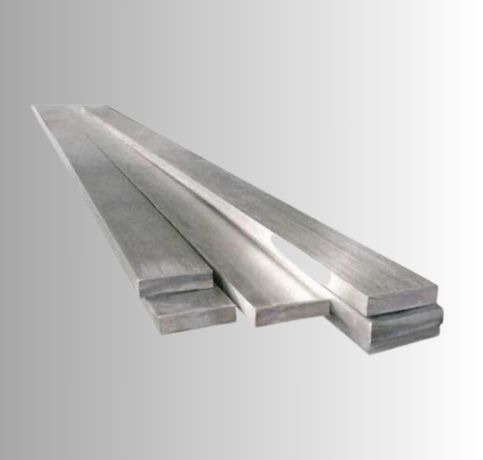

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | UNS | Cr | Mo | Fe | C≤ | Si≤ | Co≤ | Mn≤ | P≤ | S≤ |
| B2 | N10665 | 1.0max | 26.0-30.0 | 2.0max | 0.02 | 0.10 | 1.0 | 1.0 | 0.04 | 0.03 |
| B3 | N10675 | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 0.01 | 0.10 | 3.0 | 3.0 | 0.03 | 0.01 |
| X | N06002 | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.05-0.15 | 1.0 | 0.5-2.5 | 1.0 | 0.04 | 0.03 |
| C22 | N06022 | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 0.015 | 0.08 | 2.5 | 0.5 | 0.02 | 0.02 |
| C2000 | N06200 | 22.0-24.0 | 15.0-17.0 | 3.0max | 0.01 | 0.08 | 2.0 | 0.5 | 0.025 | 0.01 |
| C276 | N10276 | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 0.01 | 0.08 | 2.5 | 1.0 | 0.04 |
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) |
| B2 | 110[760] | 51[350] | 40 |
| B3 | 110[760] | 51[350] | 40 |
| X | 100[690] | 40[276] | 35 |
| C22 | 100[690] | 45[310] | 45 |
| C2000 | 100[690] | 45[310] | 45 |
| C276 | 100[690] | 41[283] | 40 |
Yes, Hastelloy Bars are highly corrosion-resistant, making them ideal for harsh environments, including chemical processing and marine applications. They resist pitting, crevice corrosion, and stress corrosion cracking effectively.
Yes, Hastelloy Rods can be customized in size and length to meet specific industry requirements. Their versatility ensures suitability for diverse applications.
Hastelloy bars perform exceptionally in high-temperature environments, offering thermal stability, oxidation resistance, and strength retention. They are ideal for demanding applications like chemical processing and aerospace.
The applications for these high-performance bars and rods are vast, particularly in industries where failure is not an option. They are indispensable in chemical processing for constructing reactors and heat exchangers, in marine engineering for components that withstand saltwater corrosion, and in pollution control systems like scrubbers. Essentially, wherever extreme temperatures, potent acids, or corrosive gases are present, our Hastelloy products provide the durable, long-lasting solution needed for safety and efficiency.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
