Nestled in the industrial hub of Safat, Kuwait, Nimish Metal has built a solid reputation as a trusted supplier and manufacturer of high-grade stainless steel products. We take particular pride in our premier selection of Stainless Steel 316Ti Round Bars and Rods, engineered to deliver exceptional performance where it matters most. Backed by extensive industry knowledge and a commitment to quality, we provide solutions that professionals depend on for demanding environments, ensuring both durability and reliability in every piece.
The composition of Stainless Steel 316Ti includes chromium, nickel, molybdenum, and a crucial titanium stabilizer. This specific chemistry grants it excellent corrosion resistance, especially against pitting and cracking in chloride environments. Mechanically, these round bars and rods offer high tensile strength and outstanding toughness, even when subjected to high temperatures. The titanium addition provides superior resistance to sensitization, preventing harmful carbide precipitation during welding and heating. This makes the material exceptionally durable and reliable under stress.
| Specifications | ASTM A276 / ASME SA276 & ASTM A479 / ASME SA276 |
| Range | 3.17 MM TO 350 MM DIA |
| Dia Meter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316TI | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | 0.1 | ||
|
Yield Strength
0.2% Proof
(MPa) |
Tensile strength
(MPa)
|
Elongation
(% in 50mm) |
Hardness (HRB) | |
|---|---|---|---|---|
|
MIN |
170 |
485 |
40.00 |
|
|
MAX |
95 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 08Ch17N13M2T | 320S31 | Z6CNDT17‐12 | X6CrNiMoTi17-12-2 |
| Density | kg/dm³ | 8 |
|---|---|---|
| Modulus of elasticity | GPa | 200 |
| Thermal conductivity | W/m°C | 15 |
| Heat capacity | J/kg°C | 500 |
| Electrical resistivity | µΩm | 0.75 |
| Poissons ratio | 0.3 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |

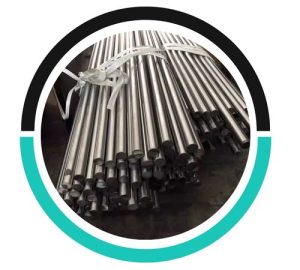

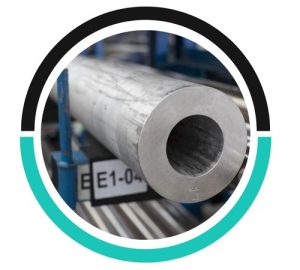

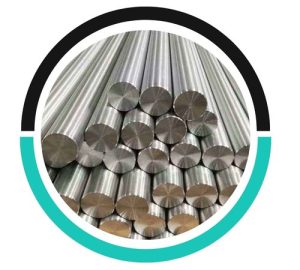

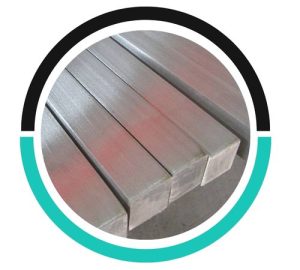

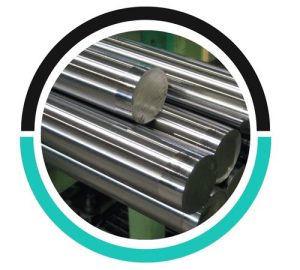

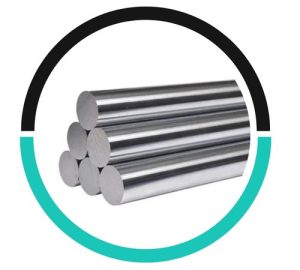

We supply a wide range of 316Ti Stainless Steel Bars and Rods, including round bars, square bars, hexagonal bars, flat bars, hollow bars, and rectangular bars. These products are available in various sizes and shapes to meet the diverse needs of different industries.
Nimish Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 316Ti Bars and Rods, catering to industrial, commercial, and personal needs across the Kuwait and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@nimishmetal.com
You’ll typically find Stainless Steel 316Ti Round Bars and Rods hard at work in industries where failure is not an option. They are a staple in chemical processing equipment, pharmaceutical manufacturing, and marine applications due to their superior corrosion resistance. These components are also essential in high-temperature environments like furnace assemblies and heat exchanger systems. Their stability makes them ideal for welded components in pipelines, flanges, and structural parts where long-term durability is critical, even under extreme conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
