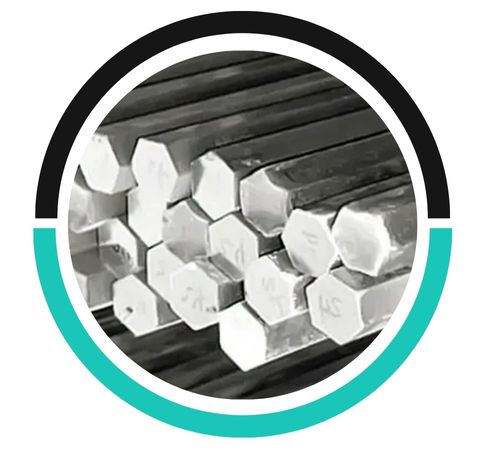

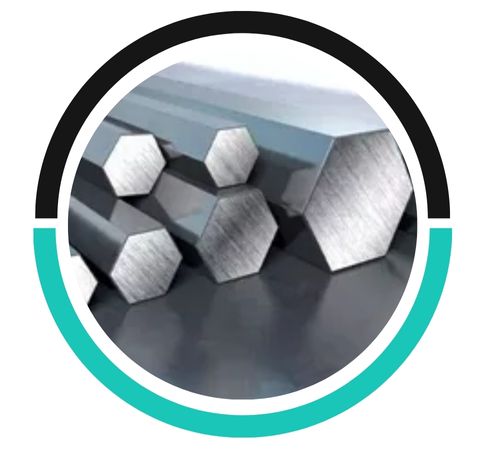

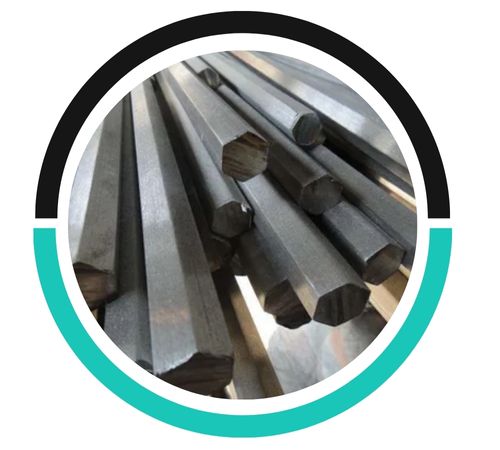

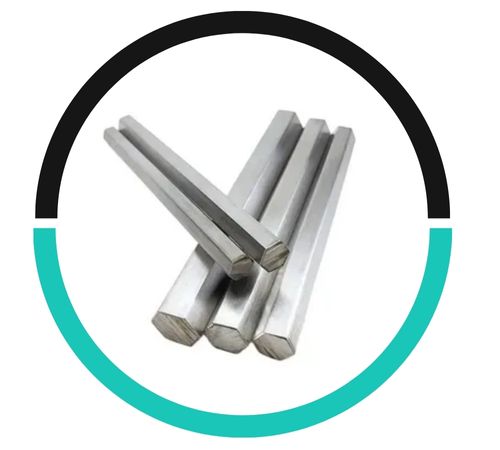

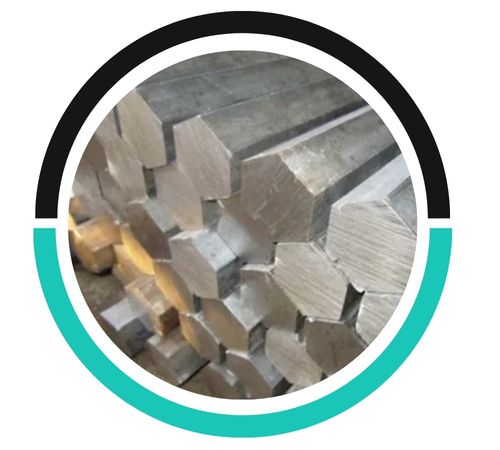

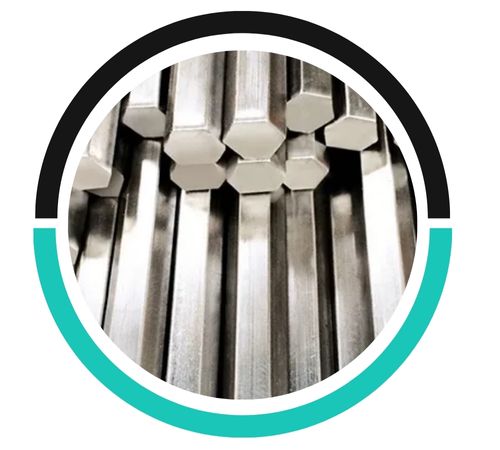

Nestled in the industrial hub of Safat, Kuwait, Nimish Metal has carved a reputation as a trusted name for quality metal components. We take pride in supplying a robust solution for demanding environments: the Stainless Steel 310 Hex Bar and Rod. This grade is specifically engineered to perform under extreme thermal stress, making it an indispensable asset for projects where ordinary stainless steels might fail. When you source from us, you’re choosing a partner dedicated to providing materials that offer exceptional durability and reliability.
The true strength of Stainless Steel 310 lies in its sophisticated composition, which is rich in chromium and nickel for superior oxidation resistance. This formulation grants the hex bars and rods a high-temperature strength, allowing them to withstand intense heat without losing their structural integrity. It retains its toughness and resists scaling, making it a fundamentally reliable choice for components that must endure extreme thermal cycling and corrosive atmospheres.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 310 | 0.25 max | 24.0 – 26.0 | 2.00 max | 19.0 – 22.0 | 0.045 max. | 0.03 max. | 1.50 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 310 | 8 | 1400 ℃ | 515 MPa | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 310 hex bars/rods are primarily used in industrial applications requiring high-temperature resistance and corrosion resistance. Common uses include furnace parts, heat exchangers, chemical processing equipment, petrochemical industries, and welding rods. Their ability to withstand extreme environments makes them ideal for high-heat and corrosive conditions.
SS 310 offers superior corrosion resistance and heat resistance compared to other stainless steel grades due to its higher chromium (25%) and nickel (20%) content. It excels in extreme temperatures (up to 1,100°C or 2,010°F) and resists oxidation, scaling, and corrosion in aggressive environments better than grades like SS 304.
Common manufacturing processes for SS 310 hex bars/rods include hot forging, cold drawing, and machining. Hot forging shapes the material at high temperatures, while cold drawing refines dimensions and improves surface finish. Machining ensures precise cuts and finishes, making the rods suitable for various industrial applications.
Because of these robust properties, our Stainless Steel 310 Hex Bar and Rod are the go-to materials for critical high-temperature applications. You’ll often find them used in furnace parts, industrial kilns, and heat treatment equipment. They are also essential for constructing heavy-duty components like turbine blades and exhaust systems, where failure is not an option. Essentially, any project demanding unwavering strength and stability in the face of intense heat can benefit from the exceptional performance of this versatile stainless steel.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
