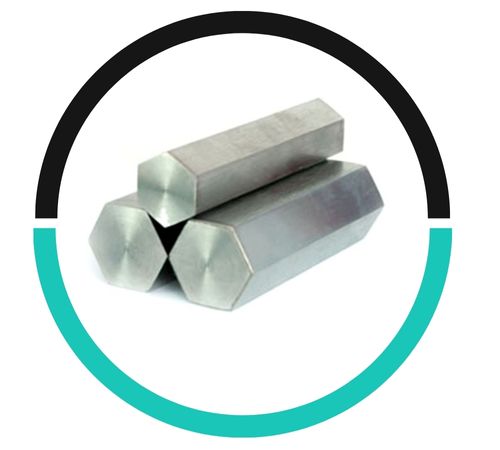

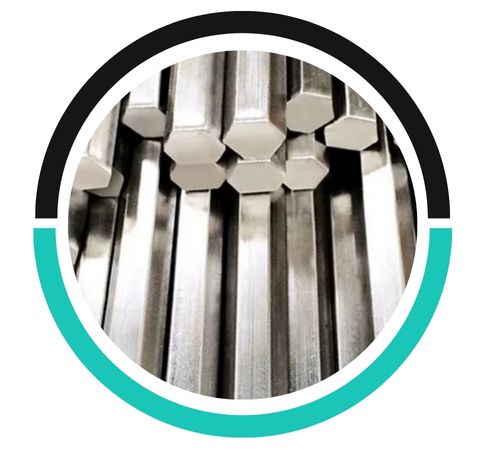

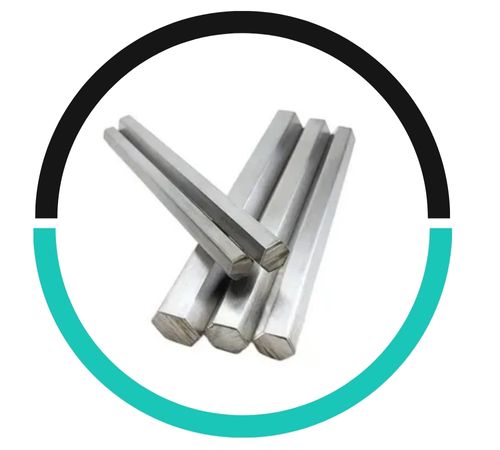

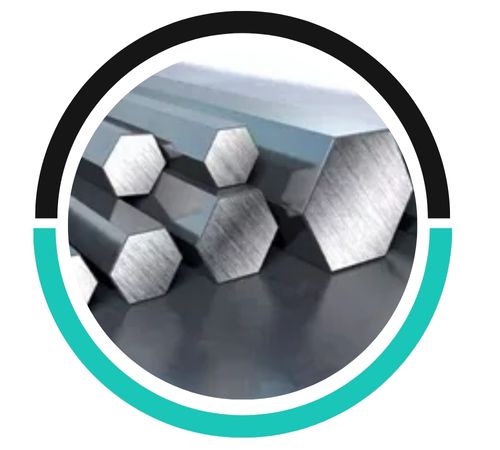

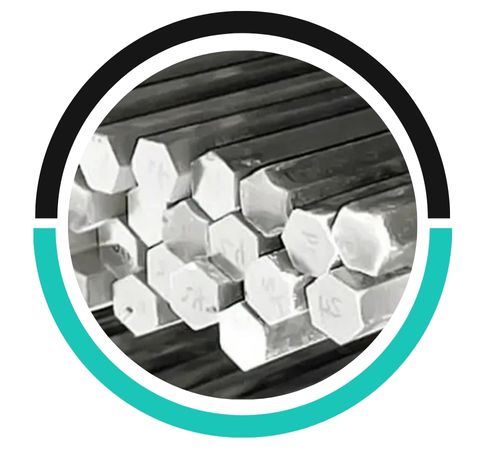

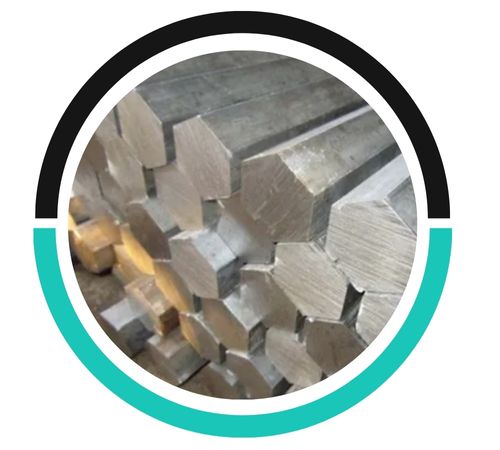

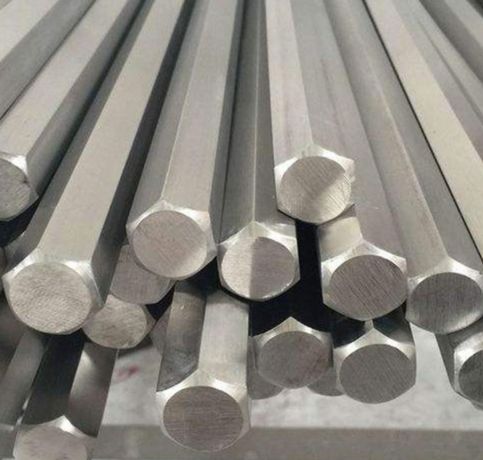

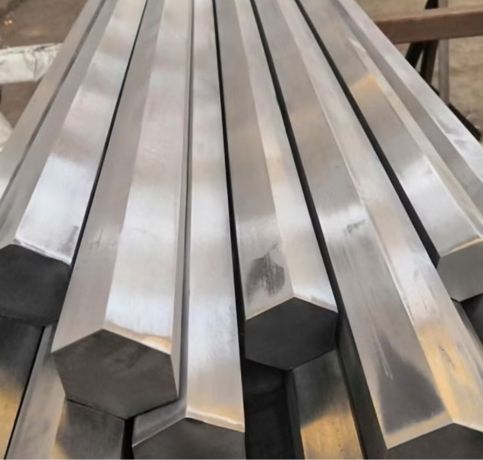

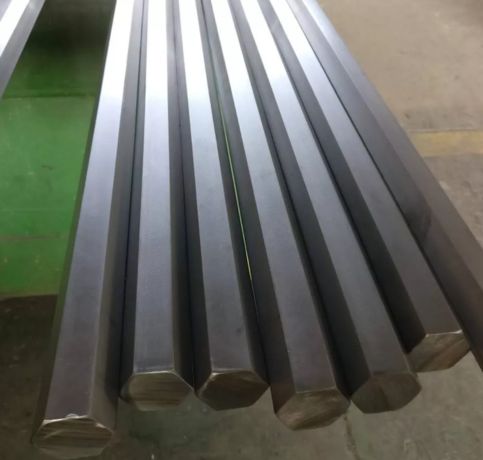

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a reputation for being a trusted supplier of high-grade metals. We take particular pride in our inventory of Stainless Steel 17-4 PH Hex Bar and Rod, a material chosen by engineers and fabricators who demand both strength and corrosion resistance. For projects where failure is not an option, this precipitation-hardening stainless steel offers a reliable solution, ensuring durability and longevity in even the most demanding environments.
The composition of 17-4 PH stainless steel is a precise blend, primarily consisting of chromium, nickel, and copper, with additions of niobium and tantalum. This unique recipe gives the material its exceptional mechanical properties. Through a simple heat treatment process, it achieves impressive strength, toughness, and good corrosion resistance. Essentially, it offers the ruggedness of certain steels with the added benefit of being able to withstand corrosive elements, making it a remarkably versatile performer.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 max | 15.00-17.50 max | 3.00-5.00 max | Bal | 1.0 | 3.0-5.0 | 0.40 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-4 PH Hex Bar and Rod can be used for structural applications due to its high strength, excellent corrosion resistance, and ability to withstand extreme environments, making it ideal for demanding conditions.
Common challenges when using Stainless Steel 17-4 PH Hex Bar include difficulties in machining due to its hardness, sensitivity to stress corrosion cracking in certain environments, and the need for precise heat treatment for optimal properties.
In practice, Stainless Steel 17-4 PH is the go-to for components that must endure stress and harsh conditions. You’ll commonly find it used for pump shafts, valves, and fasteners within the oil and gas, chemical, and marine industries. It’s also perfectly suited for gears, turbine blades, and other high-stress mechanical parts. Essentially, wherever a part needs to be tough, non-corrosive, and reliable under pressure, 17-4 PH hex bars and rods provide the foundational material for a successful build.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
