Nimonic 80A Bars and Rods

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a strong reputation as a trusted partner for high-performance materials. We proudly specialize in supplying superior Nimonic 80A bars and rods, a high-strength alloy engineered to excel where others falter. Our commitment extends beyond mere supply; we provide reliable, high-integrity materials backed by deep expertise. We understand the critical demands of your projects and are dedicated to ensuring you have the right material to achieve uncompromising performance and durability in the most challenging environments.

Nimonic 80 A Rods Price in Salmiya, Pure Nimonic 80 A Round Bars Kuwait, Nimonic 80 A Rectangular Bars Supplier in Kuwait, Nimonic 80 A Rectangular Rods Exporter in Kuwait, UNS N07080 Pure Nimonic 80 A Round Bars Stockist in Safat, DIN 2.4631 Nimonic 80 A Hex Bars Supplier in Kuwait, Nimonic 80 A Cold Drawn Round Bars Distributor in Kuwait, Nimonic 80 A Rods Stockist Salmiya

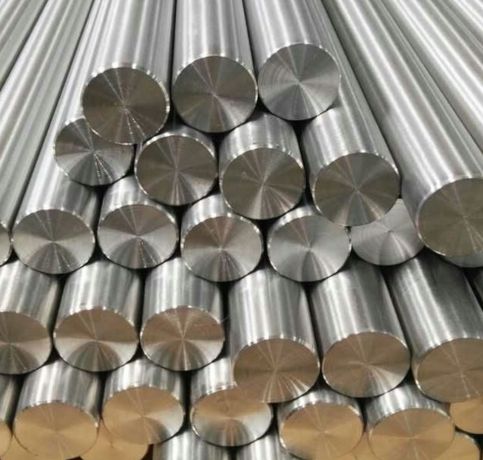

Nimonic 80A Round Bars

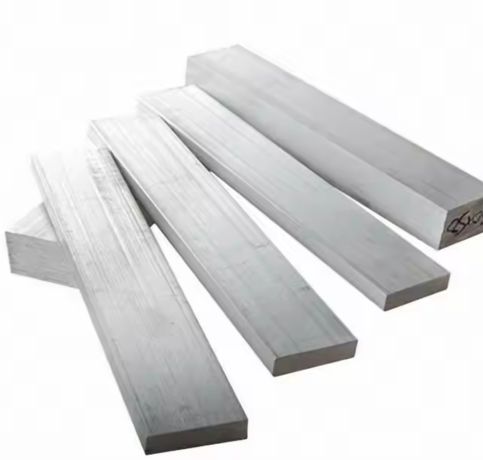

Nimonic 80A Rectangular Bars

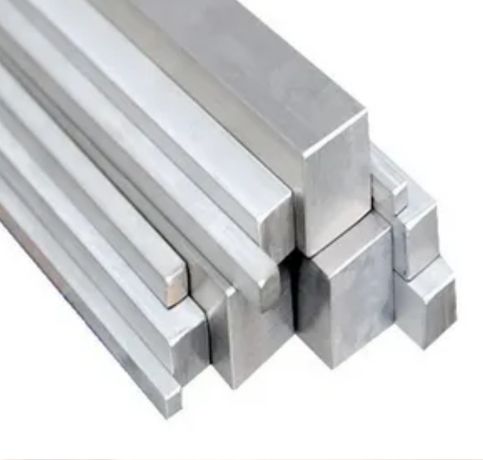

Nimonic 80A Square Rods

What is Nimonic 80A Bars and Rods?

The strength of Nimonic 80A lies in its sophisticated composition, primarily nickel-chromium with additions of aluminum and titanium. This配方 gives it exceptional mechanical properties, including remarkable tensile strength and outstanding resistance to creep, even under extreme temperatures and sustained stress. It also retains good ductility and offers excellent corrosion resistance, making it a truly robust material. These combined characteristics ensure long-term structural integrity in applications where failure is simply not an option.

Nimonic 80A Bars Price List in Kuwait, Nimonic 80A Round Bars Exporter Stockist in Jahra, Stockist of Nimonic 80A Round Bars in Jahra, Pure Nimonic 80A Bars Weight Chart, Nimonic N07080 Rods Dealer in Hawalli, Nimonic 80A Round Bars Manufacturer in Hawalli, Nimonic 80A Square Bars Supplier in Al Ahmadi, Pure Nimonic 80A Flat Bars Price List in Safat, Nimonic 80A Rectangular Bars Supplier in Salmiya

Nimonic 80A Bars and Rods Specification

Standards	Designation
ASTM	B637

Length	Diameter
2-12m	6mm-500mm

Type	Certification
Nimonic 80A Round Bar	ISO 9001:2008

Chemical Compositions of Nimonic 80A Bars

Weight %	Ni	Cr	Ti	Al	C	Si	Cu	Fe	Mn	Co	B	Zr	S
Alloy 80A	Bal	18.0-21.0	1.8-2.7	1.0-1.8	0.10 max	1.0 max	0.2 max	3.0 max	1.0 max	2.0 max	0.008 max	0.15 max	0.015 max

Nimonic 80A Bars Mechanical Properties

Material	Condition	Ultimate Tensile Strength ksi	Yield Strength ksi	Elongation on 4D (min)	Hardness min
Alloy 80A	Solution Annealed & Precipatation Treated (aged)	145	90	20	300 HV

Physical Properties of Nimonic 80A Bar

Density	8.19 g/cm3
Melting point	1320-1365°C

You Need Our Support, to Have Any Projects?

Test Certificate

Why Nimish Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Nimonic 80A Bars and Rods Types

Nimonic 80 A Round Bars Size Chart, Nimonic 80 A Polished Rods Dealer in Hawalli, Nimonic Bars 80 A Supplier in Kuwait, Nimonic 80 A Hollow Rods Price List in Safat, Pure Nimonic 80 A Rectangular Bars Supplier in Jahra, Nimonic 80 A Hexagonal Bars Exporter in Hawalli, Nimonic 80 A T-Bars Exporter in Kuwait, Pure Nimonic 80 A Flat Rods Exporter in Al Ahmadi, Nimonic 80 A Flat Bars Kuwait, Nimonic N07080 Hollow Round Bar Manufacturer in Salmiya

Frequently Asked Questions (FAQ)

Are Nimonic 80A Rod Susceptible To Galvanic Corrosion?

Yes, Nimonic 80A, a nickel-based alloy, can be susceptible to galvanic corrosion when in contact with materials that have significantly different electrochemical potentials, especially in the presence of an electrolyte.

Can Nimonic 80A Bar Be Welded?

Yes, Nimonic 80A bar can be welded. It is commonly welded using techniques like TIG or MIG welding, with preheating and post-weld heat treatment to prevent cracking.

What Sizes and Finishes Are Available for Nimonic 80A Bar ?

Nimonic 80A bars are available in various sizes, typically from 6mm to 250mm in diameter, and lengths up to 6 meters. Common finishes include bright, polished, and cold-drawn.

Nimonic 80A Bar and Rod Uses

You’ll find Nimonic 80A bars and rods hard at work in the most demanding sectors. They are essential for components like turbine blades, exhaust valves, and bolts in aerospace and jet engines, where high temperatures are constant. The petrochemical and power generation industries rely on them for high-temperature fasteners and fixtures within reactors and turbines. Essentially, any application requiring a material that can maintain its strength and resist oxidation under intense heat is a perfect fit for the enduring performance of Nimonic 80A.
