Nestled in the industrial heart of Safat, Kuwait, Nimish Metal stands as a premier manufacturer and supplier for those who demand excellence in high-performance alloys. We specialize in Monel forgings, producing incredibly robust components formed under immense pressure. This process ensures each piece from our facility meets the rigorous standards required for challenging environments. We are committed to delivering not just a product, but a reliable, long-term solution for your most demanding industrial applications.
Monel is a nickel-copper alloy that typically contains about 67% nickel and 23% copper, with small additions of iron and other elements. This composition grants it excellent mechanical properties, including high strength and toughness over a wide temperature range. Monel maintains its integrity from sub-zero conditions up to about 480°C. It also offers good fatigue strength and is about three times harder and stiffer than standard nickel. These forged components are exceptionally durable and reliable under stress.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.

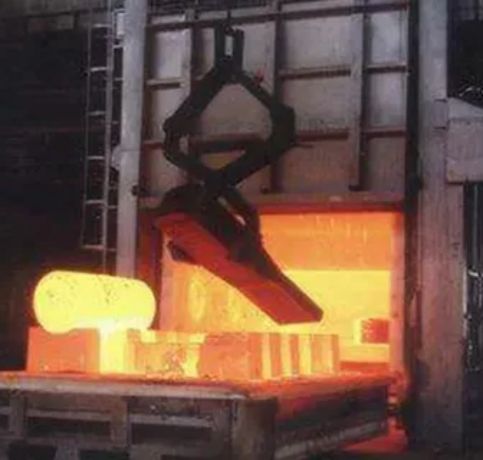

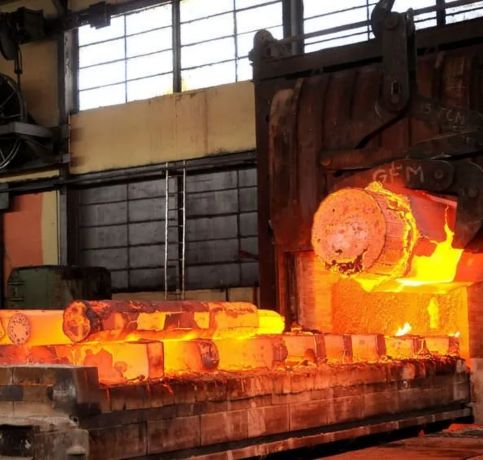

The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
You’ll find Monel forgings hard at work in critical marine and chemical processing applications. Their superb corrosion resistance makes them ideal for pump shafts, valve stems, and fasteners on ships and in offshore oil rigs, where saltwater is a constant challenge. In chemical plants, they are trusted for impellers, mixing rods, and reactor internals that must withstand aggressive acids and other corrosive substances. Essentially, anywhere extreme durability and resistance to corrosion are non-negotiable, Monel forgings provide a trusted and long-lasting solution.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
