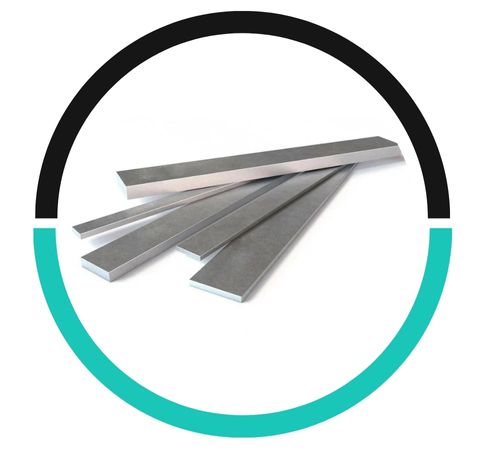

Nimish Metals is one of the Kuwait’s premium metal products suppliers and manufacturers, mainly focused in the Safats. This company supplies and sells its products to a broad spectrum of industries around the globe. Together with great dedication to quality and satisfaction of the customers. We bring to the metallic presenting wide variety of materials, including Monel Flat Bars. These Monel Flat Bars, made out of a corrosion-resistant nickel-copper alloy, are known for their resistance to nickel and copper corrosion in extremely hazardous marine and chemical environments. They are used widely in heat exchangers, pumps, and valves. We make each individual Monel Flat Bar to provide standards of strength and durability coupled with outstanding performance in the most demanding conditions.
Monel Flat Bars constitute solid bars formed from Monel increasingly composed of nickel (63%) and copper (28-34%). This exceptional composition qualifies Monel for incredibly high resistance to corrosion, especially in marine, chemical, or high-temperature areas. Iron, manganese, carbon, and silicon are all trace elements in the alloy, which also improves strength, machinability, and oxidation resistance. Monel Flat Bars demonstrate extreme world capability and, therefore, critical application used as heat exchangers, pumps, valves, and marine equipment, where durability and corrosion resistance is the essence.
Dimensions : ASTM, ASME, API.
Length : 2 meters – 7 meters ( 8 feet to 24 feet)
Size Range : 38×10 mm to 150×25 mm
Finish : Bright, Black, Polish
Form : Flat Bar
Condition : Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Other Services : Machining (CNC), Centreless Grinding (CG), Heat Treatment, Anneling, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication
Flat Bars End Finish : Sheared / Bansaw Cut / Hot- Cut With Grinding/ Water Jet Cutting.
| Element | Max | Min |
| Ni | – | 63.0 |
| Fe | 1.0 – 2.5 | – |
| C | 0.3 | – |
| Mn | 2.0 | – |
| Si | 0.5 | – |
| Cu | 28.0 – 34.0 | – |
| Al | 0.50 | – |
| S | 0.02 | – |
| Element | Monel |
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 35,000 , MPa – 240 |
| Elongation | 40 % |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@nimishmetal.com
Yes, Monel Flat Bars offer excellent resistance to seawater corrosion, making them ideal for marine applications, including shipbuilding, offshore platforms, and seawater equipment.
Yes, Monel Flat Bars are highly resistant to many acidic environments, making them suitable for use in chemical processing, reactors, and other industries where exposure to acids is common.
Monel Alloy Flat Bars are widely used in industries that demand material qualities such as strength, durability, and corrosion resistance. They are very important in the marine industry because they have propeller shafts, seawater valves, and pump parts that are corrosion resistant to seawater. They find use in chemical processing as components of heat exchangers, piping systems, and reactor parts, where aggressive chemical exposure is typical. They will also be used in aerospace, oil and gas, and power generation for applications requiring reliable performance in extreme temperatures and pressures, as well as corrosive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
