Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has established itself as a trusted name for high-performance alloys. We specialize in providing top-tier Incoloy 800H forgings, carefully engineered for the most demanding environments. Our commitment is to supply components that aren’t just durable but are pillars of reliability, ensuring your critical operations proceed without a hitch. We understand that your projects demand excellence, and we stand ready to deliver the robust quality and technical support you need.
Incoloy 800H possesses a unique composition rich in nickel, chromium, and iron, which is stabilized with titanium and aluminum. This specific formulation allows it to excel under intense heat and pressure. The material exhibits impressive mechanical strength, maintaining its integrity at temperatures soaring up to 1300°F. Its excellent creep rupture properties mean it can withstand sustained stress over long periods, making it far superior to ordinary steels in high-temperature scenarios.
Specifications ASTM B564 / ASME SB564, AMS 5766
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
| Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Alloy 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1350-1400 ℃ | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
| Density | 0.287 lb/in3 / 7.94 g/cm3 |
| Melting Point | 2475 – 2525 °F/ 1357 – 1385 °C |
| Specific Heat @ 70°F | 0.11 Btu/lb•°F |
| Permeability @ 70°F Annealed | 1.014 (200 Oersted) |
| Curie Temperature | -115 °C/ -175 °F |
| Elastic Modulus | 28.50 X 106 psi |
| Electrical Resistivity @ 70°F | 595 ohm•circ mil/ft |
| Annealling Incoloy 800 | 983 – 1038 °C / 1800 – 1900 °F |
| Annealling Incoloy 800H / Ht | 1147 – 1177°C / 2100 – 2150 °F |
| Quench | Rapid Air / Water |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |

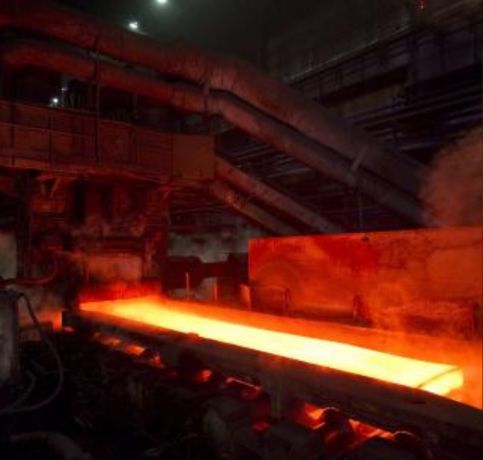

The ideal temperature range for forging Incoloy 800H is between 2100°F and 2250°F (1149°C to 1232°C). This range ensures optimal workability and preserves the material’s mechanical properties.
Post-forging operations for Incoloy 800H typically include annealing to relieve stress and enhance ductility, followed by heat treatment to achieve desired mechanical properties. Surface cleaning and inspection for defects are also essential to ensure quality.
To determine if Incoloy 800H Forgings meet your specific needs, review material specifications, including composition and mechanical properties, and consult with suppliers for customized testing or performance data. Additionally, consider your application's temperature, corrosion, and mechanical requirements.
You’ll typically find Incoloy 800H forgings hard at work in the most challenging industrial settings. They are essential components within furnace systems, pyrolysis units, and heat exchangers. The petrochemical and power generation industries rely on them for critical equipment like reformer assemblies and inlet piping. Essentially, anywhere extreme heat and corrosion are constant foes, these forgings provide the dependable performance needed to keep operations running safely and efficiently.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
