Incoloy 800 Forgings

Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has established itself as a trusted name for high-performance materials, specializing in the supply and manufacturing of Incoloy 800 forgings. We understand that demanding environments require unwavering reliability, which is why our focus is on delivering components that meet the highest standards of quality and durability. Our commitment is to provide robust solutions that stand up to extreme conditions, ensuring your operations benefit from both superior material integrity and our dedicated local support.

800 Incoloy Open Die Forging Stockist in Jahra, ASTM B564 Incoloy 800 Forgings Supplier in Kuwait, Incoloy Alloy 1.4876 Compression Forging Size Chart, ASME SB564 Incoloy N08800 Hot Forging Exporter in Al Ahmadi, Incoloy 800 Forgings Manufacturer in Salmiya, N08800 Incoloy Industrial Forgings Distributor Exporter in Kuwait, Incoloy UNS N08800 Seamless Rolled Forging Supplier in Jahra, UNS N08800 Incoloy Alloy Cold Forging Size Chart

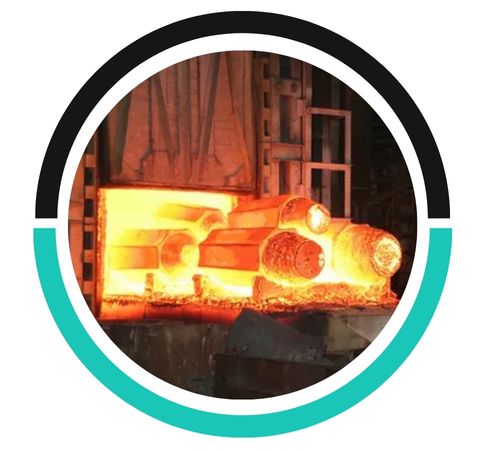

Incoloy 800 Hot Forging

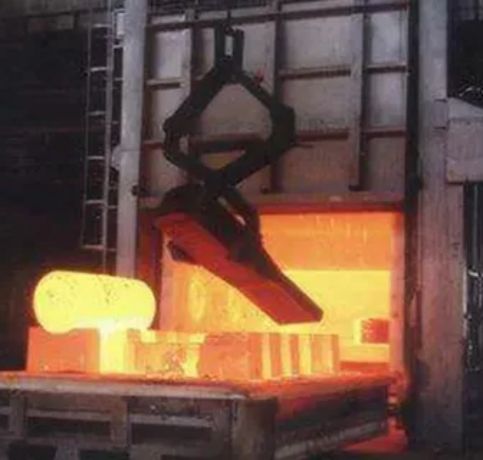

Incoloy 800 Open Die Forging

Incoloy 800 Closed Die Forging

What is Incoloy 800 Forgings?

The strength of Incoloy 800 lies in its carefully balanced composition, primarily nickel, iron, and chromium, with a significant addition of chromium for oxidation resistance. This mix grants it exceptional mechanical properties, including high tensile strength and excellent creep-rupture strength, allowing it to perform reliably under sustained stress and elevated temperatures. It maintains good ductility and impact strength even after prolonged exposure to heat, making it a material chosen for its toughness and long-term stability in challenging settings.

Incoloy UNS N08800 Impression Die Forging Distributor in Kuwait, Incoloy UNS N08800 Cold Forging Stockist Salmiya, UNS N08800 Incoloy 800 Open Die Forging Exporter in Kuwait, Incoloy UNS N08800 Compression Forging Price in Salmiya, 1.4876 Incoloy Upset Forging Dimensions, UNS N08800 Incoloy Forgings Supplier in Kuwait, Incoloy 800 Open Die Hammer Forging Supplier in Jahra, Incoloy N08800 Press Forgings in Hawalli, Incoloy DIN 1.4876 Open Die Hammer Forging Stockist in Safat, ASTM A182 Incoloy N08800 Forging Price List Hawalli

Incoloy 800 Forgings Specification

Specifications ASTM B564 / ASME SB564, AMS 5766

Flat bar blocks up to 27″ width and 15,000 lbs.

Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length

Discs and hubs up to 50″ diameter and 20,000 lbs.

Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length

Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.

Chemical Compositions of Incoloy 800 Forgings

Grade	Ni	Fe	Cr	Cu	Ti	Al	C	Mn	S	Si
Alloy 800	30.0-35.0	39.5 min	19.0-23.0	.75 max	.15-.60	.15-.60	.1 max	1.5 max	.015 max	1.0 max

You Need Our Support, to Have Any Projects?

Test Certificate

Why Nimish Metals?

Packaging

Incoloy 800 Forgings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1350-1400 ℃	Psi – 75,000 , MPa -520	Psi – 30,000 , MPa – 205	30 – 35 %

Incoloy 800 Forgings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 800	N08800	1.4876	Z8NC32-21	X10NiCrAlTi32-20	NCF 800	NA 15	ЭИ670	XH32T

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 800 Forgings Types

Incoloy Alloy 800 Closed Die Forging Price List in Safat, Incoloy UNS N08800 Open Die Forging Weight Chart, Incoloy UNS N08800 Closed Die Hammer Forging Supplier in Kuwait, Incoloy 800 Press Forging Manufacturer in Hawalli,Incoloy 800 Compression Forging Al Ahmadi, Incoloy UNS N08800 Impression Die Forging Size Chart, Incoloy 1.4876 Upset Forging Dealer in Al Ahmadi, ASTM B564 Incoloy Alloy 800 Forgings Price in Kuwait, Stockist of Incoloy UNS N08800 Forgings in Jahra

Frequently Asked Questions (FAQ)

Can Incoloy 800 Be Forged Into Custom Shapes?

Yes, Incoloy 800 can be forged into custom shapes. Its excellent high-temperature resistance and strength make it suitable for various forging processes.

What Temperature Range is Ideal For forging Incoloy 800?

The ideal temperature range for forging Incoloy 800 is between 1,800°F to 2,200°F (982°C to 1,204°C). This range ensures optimal ductility and workability during the forging process.

How Do I Assess the Forging Strength of Incoloy 800 For Aerospace Applications?

To assess the forging strength of Incoloy 800 for aerospace applications, evaluate its tensile strength, yield strength, and fatigue resistance at elevated temperatures. Additionally, assess its performance under cyclic loads and long-term thermal stability.

Incoloy 800 Forgings Uses

The unique properties of Incoloy 800 forgings make them indispensable in industries where failure is not an option. You will find them at the core of critical systems, such as heat exchanger tubing, furnace components, and pyrolysis tubes in petrochemical plants. They are also essential in power generation for turbine blades and exhaust systems, as well as in nuclear reactors for various structural parts. Essentially, wherever there are combinations of high heat, corrosive atmospheres, and high mechanical stress, these forgings provide a dependable and long-lasting solution.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
