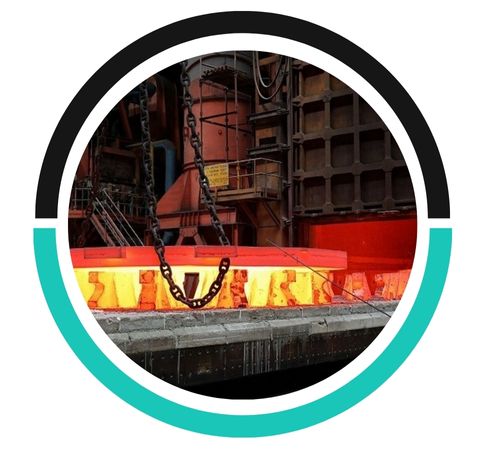

Located in the heart of Safat, Kuwait, Nimish Metal has built a strong reputation as a trusted manufacturer and supplier of high-performance metal components. We specialize in producing precision Hastelloy forgings, a cornerstone of our offerings for industries that cannot compromise on material integrity. Our focus is on delivering robust components that stand up to the most demanding environments, ensuring reliability and longevity for the critical systems our clients depend on every day.
Our Hastelloy forgings are defined by their exceptional composition, primarily nickel-chromium-molybdenum, which grants them a remarkable resistance to pitting and cracking. This is matched by outstanding mechanical strength, even at elevated temperatures, and superb toughness. This unique combination means these materials maintain their structural integrity and resist deformation under extreme stress and corrosive attacks, making them a superior choice for challenging applications.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Hastelloy C22, Hastelloy C276
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C 276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C 22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Alloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Alloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
To improve the surface finish of Hastelloy forgings, use techniques like polishing, grinding, or shot peening. Additionally, chemical or electrochemical cleaning can remove surface contaminants and enhance smoothness.

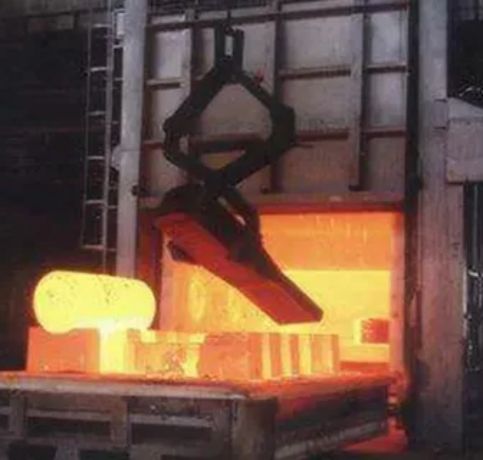

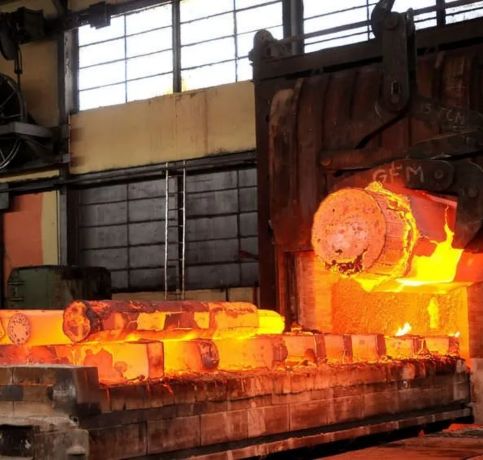

The most suitable forging techniques for Hastelloy include open-die forging and closed-die forging, which ensure optimal material flow and minimize defects. These methods provide the necessary strength and precision for high-performance applications.
To determine if Hastelloy forgings meet your needs, evaluate their chemical composition, mechanical properties, and corrosion resistance in your specific operating conditions. Conduct material testing or consult with suppliers for tailored solutions based on your application requirements.
The unique properties of Hastelloy forgings make them indispensable in sectors where failure is not an option. You will find them at the core of chemical processing equipment, vital components in aerospace engineering, and within the aggressive environments of oil and gas extraction. They are essential for constructing pollution control scrubbers, critical pharmaceutical manufacturing systems, and nuclear reactors, proving their worth wherever extreme temperatures and highly corrosive substances are present.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
