Carbon Steel Spring Bar and Rod

For over a decade, Nimish Metal has been a trusted name in Safat, Kuwait, standing as a reliable source for quality metals. We take pride in supplying a premium Carbon Steel Spring Bar Rod, engineered to meet the demanding specifications of various industries. When you source from us, you’re choosing a partner dedicated to providing strong, dependable materials that form the backbone of critical applications across the region. Our commitment is to quality and service that you can build on.

Carbon Steel Spring Rods Dealer in Hawalli, Carbon Steel Spring Bars Manufacturer in Hawalli, Carbon Steel Spring Bars Supplier in Al Ahmadi, Carbon Steel Spring Bars Size Chart, Carbon Steel Spring Bars Price in Salmiya, Carbon Steel Spring Bars and Rods Supplier in Kuwait, Carbon Steel Spring Bars Stockist in Jahra, Carbon Steel Spring Bars Supplier in Safat

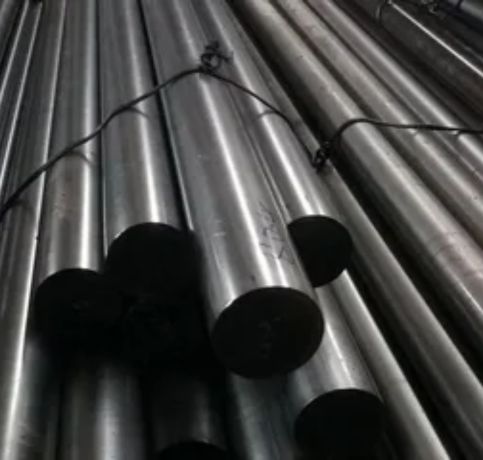

Carbon Steel Spring Round Bar

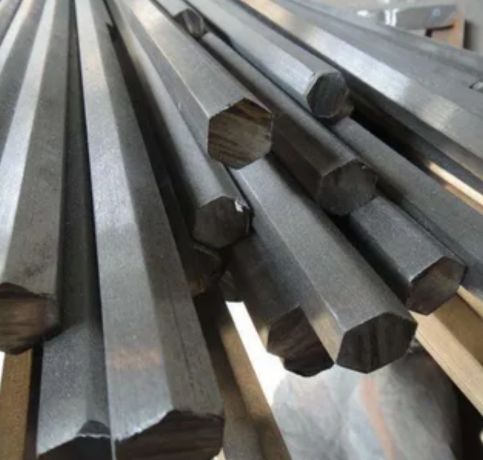

Carbon Steel Spring Hex Bar

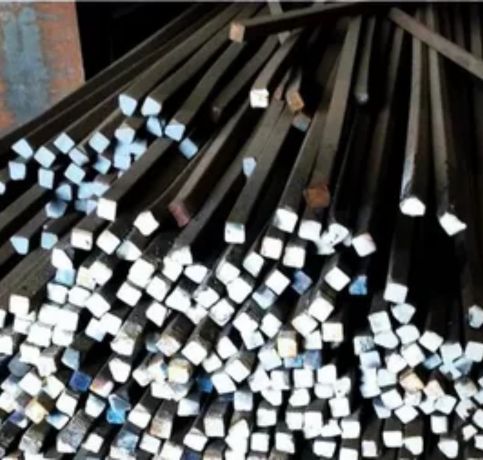

Carbon Steel Spring Square Bar

What is Carbon Steel Spring Bar?

The composition of this rod relies on high-quality carbon steel, which gives it a unique set of mechanical properties. It is well-regarded for its impressive tensile strength and excellent resilience, meaning it can endure repeated flexing and heavy loads without deforming. This ability to return to its original shape after stress is what makes it the material of choice for spring applications, providing long-lasting performance under demanding conditions.

Carbon Steel Spring Bars Price List in Safat, Carbon Steel Spring Bars Supplier in Jahra, Carbon Steel Spring Bars Exporter in Hawalli, Carbon Steel Spring Bars Exporter in Kuwait, Carbon Steel Spring Bars Manufacturer in Salmiya, Carbon Steel Spring Bars Distributor in Kuwait, Carbon Steel Spring Bars Dealer in Hawalli, Stockist of Carbon Steel Spring Bars in Jahra, Carbon Steel Spring Bars Supplier in Kuwait, Carbon Steel Spring Bars Exporter in Al Ahmadi

Chemical Compositions of Carbon Steel Spring Bar

Steel Grade	C	Mn	Si	P	S	Cr	Ni	B	Cu	Mo	V
55	0.52-0.60	0.50-0.80	0.17-0.37	0.035 max	0.035 max	0.25 max	0.30 max	/	0.25 max	/	/
65	0.62-0.70	0.50-0.80	0.17-0.37	0.035 max	0.035 max	0.25 max	0.25 max	/	0.25 max	/	/
70	0.62-0.75	0.50-0.80	0.17-0.37	0.035 max	0.035 max	0.25 max	0.25 max	/	0.25 max	/	/
75	0.72-0.80	0.50-0.80	0.17-0.37	0.035 max	0.035 max	0.25 max	0.30 max	/	0.25 max	/	/
85	0.95-1.04	0.40 max	0.35 max	0.025 max	0.025 max	/	/	/	/	/	/
65Mn	0.62-0.70	0.90-1.20	0.17-0.37	0.035 max	0.035 max	0.25 max	0.25 max	/	0.25 max	/	/
60Si2Mn	0.56-0.64	0.70-1.00	1.50-2.00	0.035 max	0.035 max	0.35 max	0.25 max	/	0.25 max	/	/
50CrVA	0.46-0.54	0.50-0.80	0.17-0.37	0.025 max	0.025 max	0.80-1.10	0.35 max	/	0.25 max	/	0.10-0.20
55SiCrA	0.51-0.59	0.50-0.80	1.20-1.60	0.025 max	0.025 max	0.50-0.80	0.35 max	/	0.25 max	/	/
60Si2CrA	0.56-0.64	0.40-0.70	1.40-1.80	0.025 max	0.025 max	0.70-1.00	0.35 max	/	0.25 max	/	/

Carbon Steel Spring Rods Mechanical Properties

Steel Grade	Tensile Strength Rm (Mpa)	Yield Strength Rp0.2 (Mpa)	Elongation A5 (%)	Area Reduction Ratio C (%)
65	980 min	785 min	9 min	35 min
70	1030 min	835 min	8 min	30 min
85	1130 min	980 min	6 min	30 min
65Mn	980 min	785 min	8 min	30 min
60Si2Mn	1275 min	1180 min	5 min	25 min
50CrVA	1275 min	1130 min	10 min	40 min
55SiCrA	1450-1750	1300 min	6 min	25 min
60Si2CrA	1765 min	1570 min	6 min	20 min

You Need Our Support, to Have Any Projects?

Test Certificate

Why Nimish Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

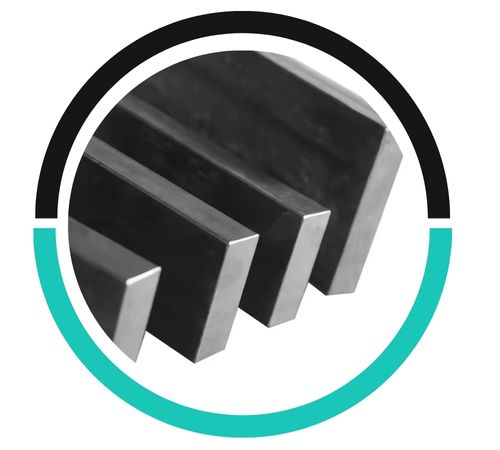

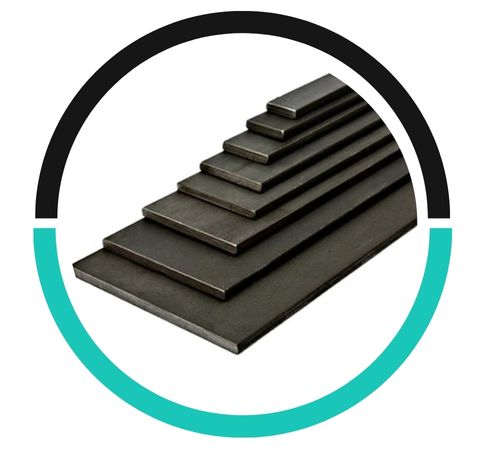

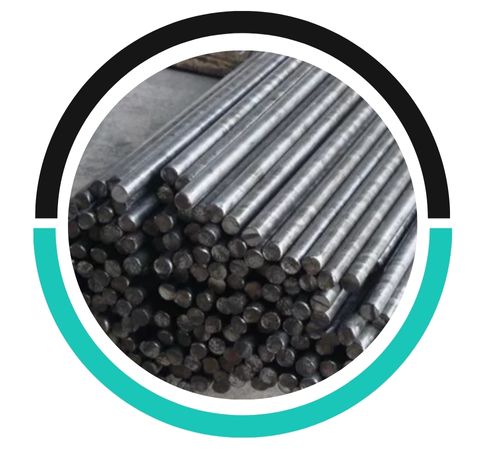

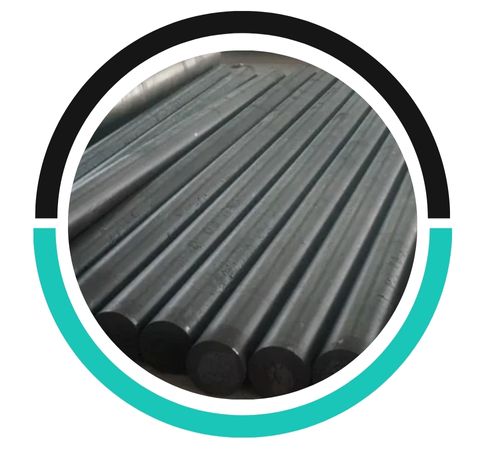

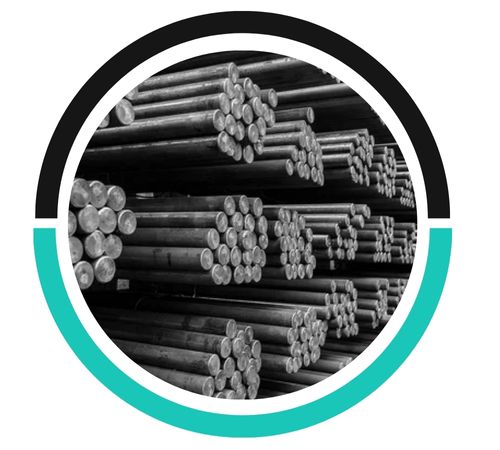

Carbon Steel Spring Bars Types

Carbon Steel Spring Bars Kuwait, Carbon Steel Spring Bars Supplier in Kuwait, Carbon Steel Spring Bars Exporter in Kuwait, Carbon Steel Spring Bars Stockist in Safat, Carbon Steel Spring Bars Supplier in Kuwait, Carbon Steel Spring Bars Distributor in Kuwait, Carbon Steel Spring Rods Stockist Salmiya, Carbon Steel Spring Bars Price in Salmiya, Carbon Steel Spring Bars and Rods Kuwait

Frequently Asked Questions (FAQ)

What Are The Considerations For Selecting Carbon Steel Spring Bars?

When selecting carbon steel spring bars, consider factors like the required strength, durability, and fatigue resistance for the specific application. Also, evaluate the environment's corrosion potential and the bar's ability to retain spring properties over time.

Can Carbon Steel Spring Bars Be Used In Cryogenic Applications?

Carbon steel spring bars are generally not suitable for cryogenic applications due to their reduced toughness and brittleness at extremely low temperatures. Materials like stainless steel or special alloys are preferred for such conditions.

What Are The Available Sizes And Dimensions Of Carbon Steel Spring Rods?

Carbon steel spring rods are available in various sizes, typically ranging from 1/4 inch to several inches in diameter, with lengths varying based on application requirements. Custom sizes can be manufactured to meet specific load, stress, or design needs.

Carbon Steel Spring Bars Uses

The uses for this carbon steel spring bar rod are extensive, seamlessly fitting into countless projects. It’s the core component in manufacturing durable suspension systems, reliable industrial valve springs, and robust mechanical engine parts. Beyond automobiles and machinery, it’s also essential in power tools, agricultural equipment, and various heavy-duty mechanical linkages. Essentially, wherever durability and a consistent return-to-form are required, this rod proves to be an indispensable resource for engineers and fabricators.

Our Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
