Nestled in the industrial heart of Safat, Kuwait, Nimish Metal has built a solid reputation for supplying high-quality carbon steel solutions. We take great pride in being your trusted partner for Carbon Steel EN-9 Bars, known for their remarkable durability and reliability. Sourced from reputable mills, our EN-9 bars are engineered to meet rigorous standards, ensuring your projects benefit from superior strength and performance. When you choose Nimish Metal, you’re selecting a partner dedicated to providing the robust materials needed to build and create with confidence.
Carbon Steel EN-9 boasts a higher carbon content, along with manganese and silicon additions, which positions it as a high-strength, moderately hard grade. Its composition allows it to achieve even greater hardness and strength through heat treatment processes. While its formability in the annealed state is reasonable, its true potential is unlocked through tempering and hardening. This makes it less ductile than milder steels but exceptionally robust for applications demanding significant wear resistance and the ability to withstand heavy loads.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |

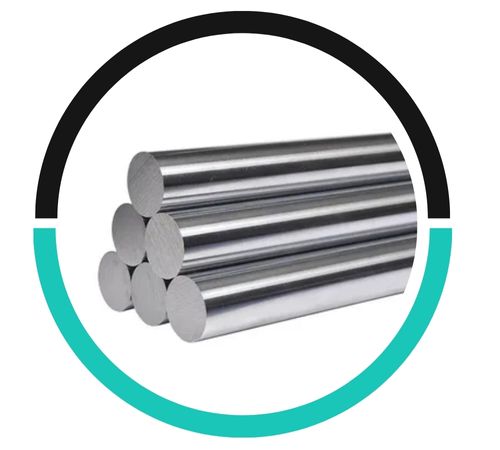

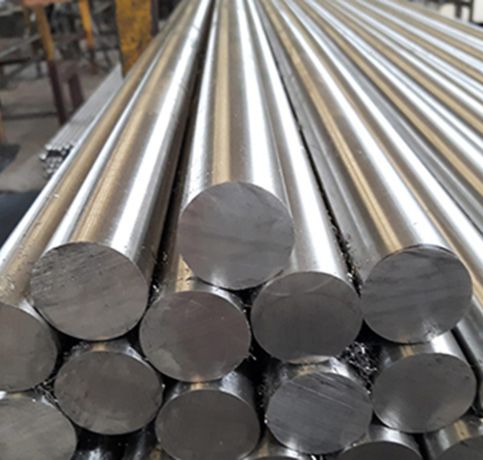

| Round Bar Size | Diameter: 3-~800mm |

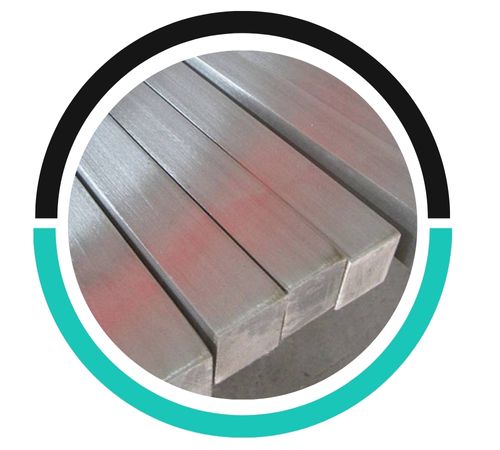

| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

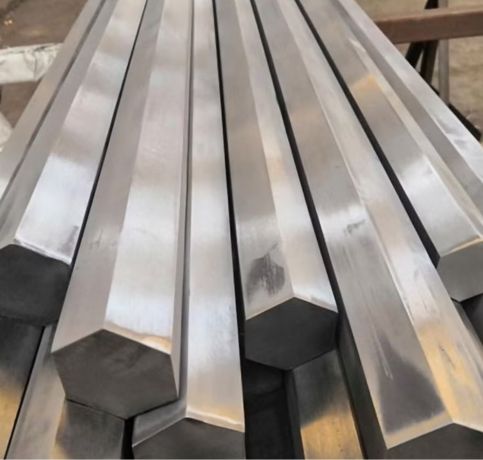

| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

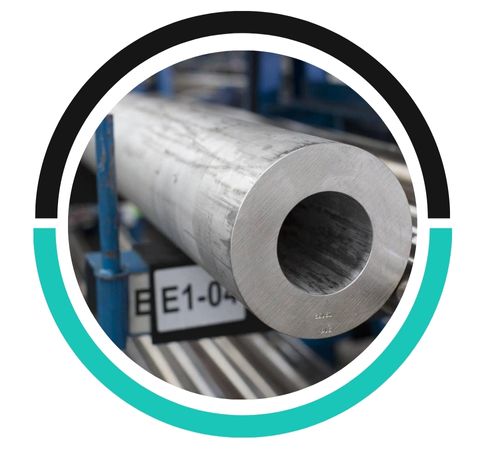

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |

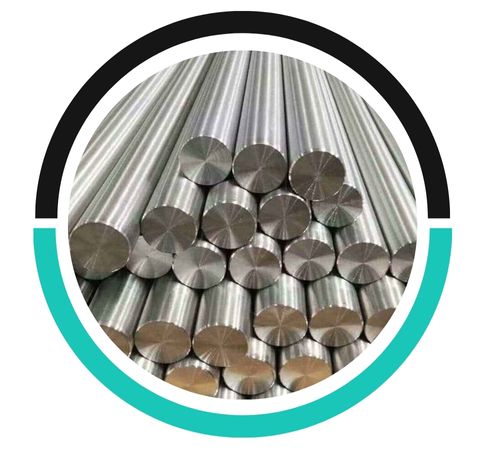

| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |

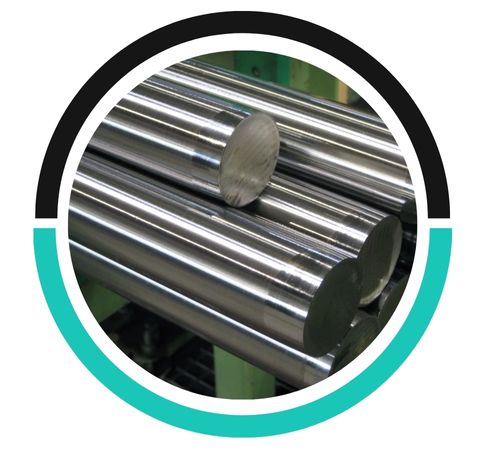

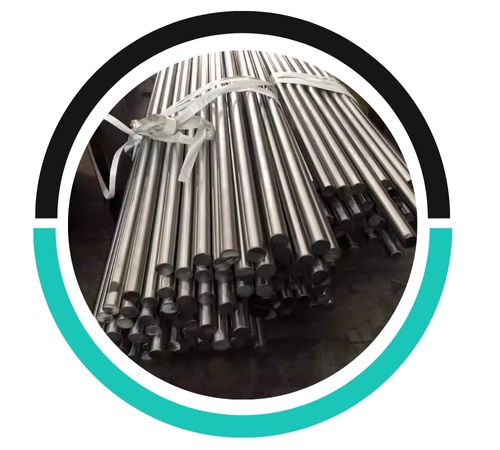

| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |

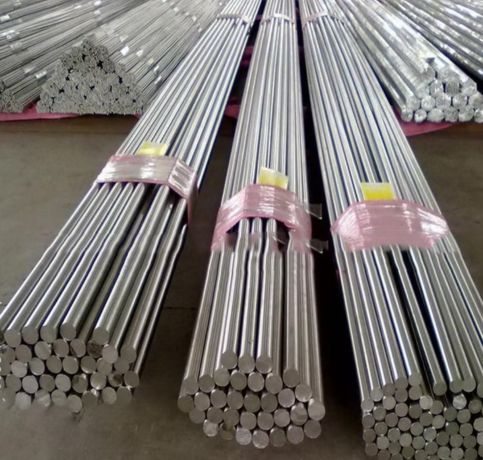

| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| EN9 / 070M55 Bars and Rods Conforms To NACE MR0175/ISO 15156 | |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| Standard | CS EN-9 |
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
Carbon Steel EN-9 is commonly used for manufacturing bolts, nuts, fasteners, and structural components in heavy-duty applications like automotive and construction industries.
EN-9 offers excellent tensile strength, wear resistance, and hardenability, making it suitable for components subjected to mechanical stresses and heavy-duty environments.
Yes, Carbon Steel EN-9 can be heat-treated to enhance its hardness and strength, making it versatile for various engineering applications.
The robust nature of EN-9 makes it the material of choice for heavy-duty components. You’ll often find it in demanding applications like high-strength shafts, gears, spindles, and keyed fasteners, where its ability to endure stress is crucial. In industrial settings, it’s perfect for manufacturing machine parts, tools, and wear plates. Its capacity to be hardened also makes it suitable for a variety of agricultural machinery parts and certain non-critical cutting tools, proving its versatility across different fields that require a dependable and strong steel.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
