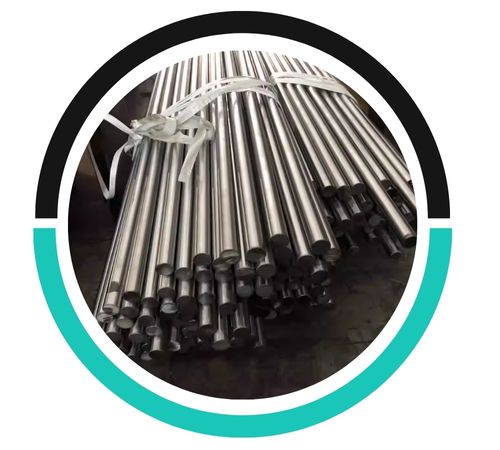

At Nimish Metal in Safat, Kuwait, we understand that the strength of your project begins with the quality of its core components. That’s why we are proud to supply high-grade Carbon Steel EN-19 (V 320) Bars, known for their exceptional durability and resilience. Sourced from trusted manufacturers, these bars are the go-to choice for engineers and fabricators who cannot compromise on material integrity. We ensure that the steel you receive is ready to form the robust backbone of your most demanding applications, delivering reliability from our warehouse directly to your workshop.
This grade is renowned for its well-balanced composition, primarily chromium, manganese, and molybdenum, which work together to create a material with superior strength. After undergoing precise heat treatment, it achieves impressive mechanical properties, including a high tensile strength and excellent toughness. This combination allows it to withstand significant stress and impact without succumbing to wear, making it a dependable choice where both hardness and the ability to absorb energy are critical for long-term performance.
| Grades | EN 8, EN 19, EN 24, EN 31 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

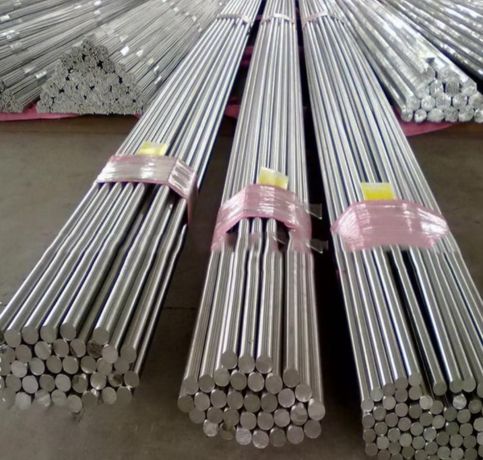

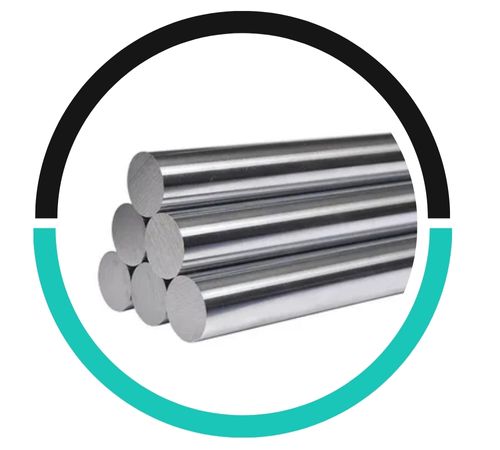

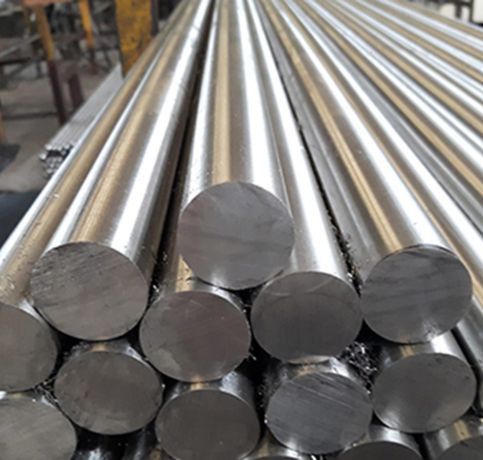

| Carbon Steel EN Series Round Bars | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Carbon Steel EN Series Rectangular Bars | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |

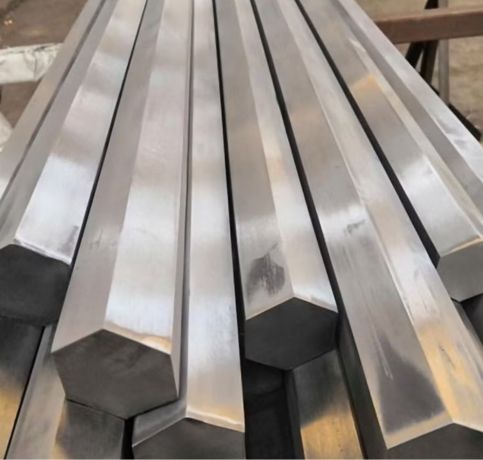

| Carbon Steel EN Series Hex Bars | AF5.8mm–17mm |

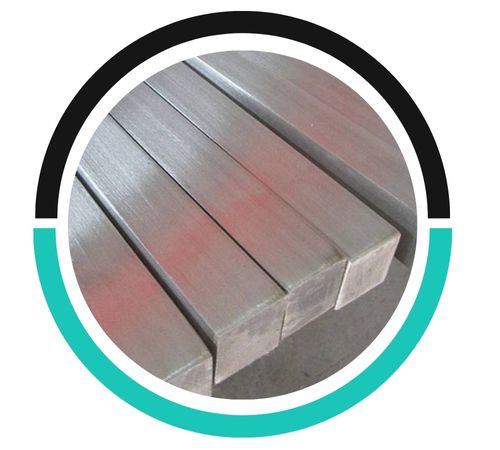

| Carbon Steel EN Series Square Bars | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |
| Carbon Steel EN Series Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |

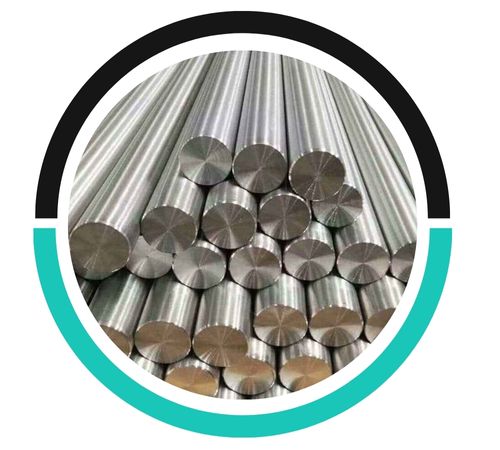

| Finish | Bright, Polish & Black |

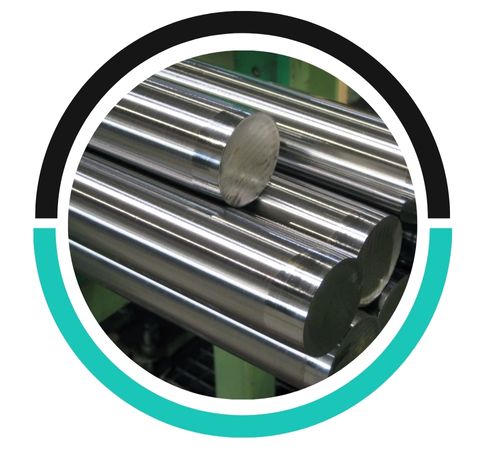

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Annealed | R | S | T | U | V | W | Y | |
|---|---|---|---|---|---|---|---|---|
| Ruling Section (mm) | 150 | 150 | 100 | 65 | 65 | 30 | 30 | 25 |
| Tensile Strength (MPa) | 680/720 | 690/850 | 770/930 | 850/1000 | 930/1080 | 1000/1160 | 1080/1240 | 1280 |
| Yield Stress (MPa) | 440/480 | 480 | 570 | 665 | 740 | 835 | 895 | 1050 |
| Elongation (% Min) | 22 | 15 | 15 | 13 | 12 | 12 | 10 | 10 |
| ISO V Impact (Joule) | 30 | 30 | 30 | 30 | 25 | 25 | 22 | 7 |
| Hardness (Brinell) | 190/210 | 201/255 | 223/277 | 248/302 | 269/321 | 293/341 | 311/375 | 363/415 |
| Proof Stress (0.2%) if required (MPa, Min) | 495 | 550 | 630 | 710 | 770 | 850 | 985 |
| Standard | CS EN-19 |
| UNS | – |
| WERKSTOFF NR. | 42Cr4Mo2 |
| BS | 709M40 |
| IS | 40Cr4Mo3 |
| JIS | – |
| EN | EN19 |
| SAE/AISI | 4140,4142 |
They offer high tensile strength, toughness, and excellent wear resistance, making them ideal for demanding applications.
Commonly used in automotive, aerospace, and engineering sectors for parts like crankshafts, gears, and heavy-duty machinery components.
You’ll commonly find EN-19 (V 320) bars at the heart of heavy-duty machinery and critical components. They are ideal for manufacturing robust parts like axles, shafts, spindles, and high-strength bolts that endure constant stress. The automotive and engineering industries heavily rely on this steel for gears, pinions, and other transmission components. Essentially, any application demanding a material that can handle high loads, resist abrasion, and maintain its shape under pressure is a perfect match for the proven capabilities of these bars.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nimish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Safat, Kuwait
