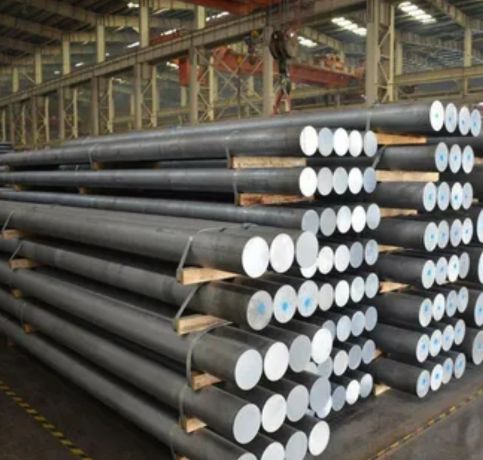

For over two decades, Nimish Metal has been a trusted name in Safat, Kuwait, providing industry with top-tier materials. Our reputation is built on reliability and deep market knowledge, making us the go-to source for specialized components. When you need the exceptional corrosion resistance of Alloy 20 Round Bars, we ensure you receive a product that meets rigorous standards. We understand that the success of your projects depends on the quality of the raw materials, and we take great pride in delivering exactly that.
These bars are crafted from a unique nickel-iron-chromium alloy, often containing additions of copper and columbium. This composition gives them outstanding resistance to sulfuric acid and other aggressive chemicals. In terms of strength, they offer a robust yield strength of approximately 40,000 psi and a tensile strength of around 80,000 psi, providing excellent durability and structural integrity for demanding environments where lesser materials would quickly fail. This makes them exceptionally reliable under stress.
Alloy 20 Round Bar Specification : ASTM B473 , ASME SB473
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

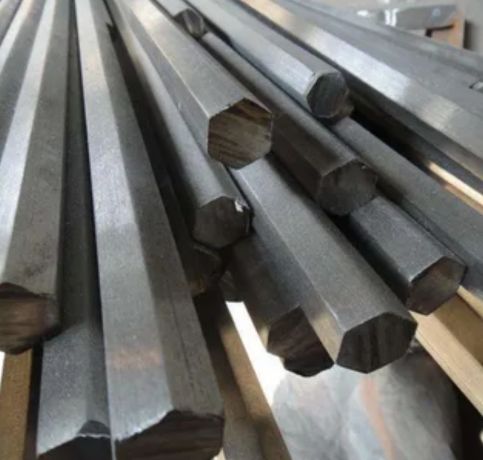

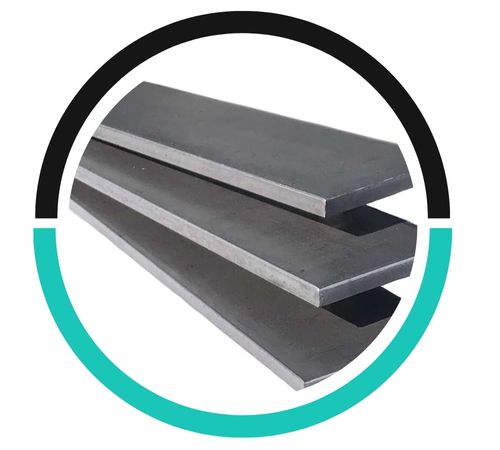

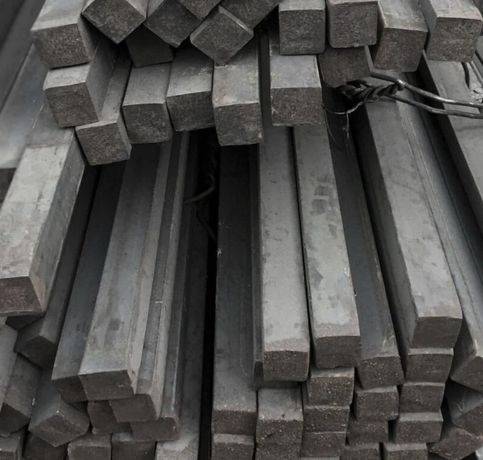

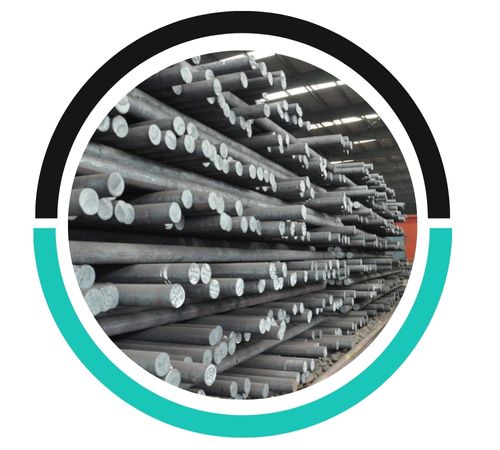

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | UNS | WNR. | EN | AFNOR |
|---|---|---|---|---|
| Alloy 20 | N08020 | 2.4660 | NiCr20CuMo | Z2NCUD31-20AZ |
Type | SIZES (mm) | ISO Tolerance | SIZES (Inches) |
|---|---|---|---|

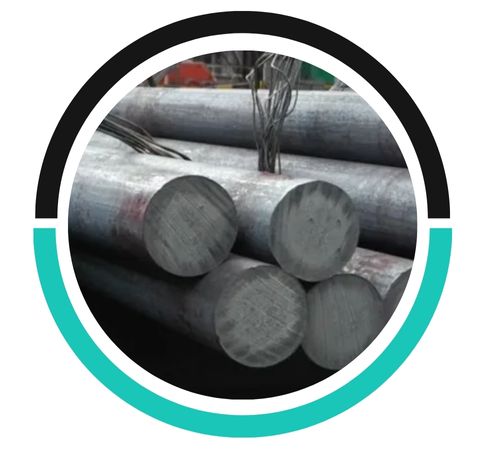

Peeled and Polished | 40.00 to 150.00 | h11-DIN 1013 | 1.50″ to 6.00″ |
Cold Drawn and Ground | 10.00 to 75.00 | h9-h8-h11-h10 | 5/6″ to 2.50″ |
Cold Drawn and Polish | 3.00 to 75.00 | h9-h8-h11-h10 | 1/8″ to 3.00″ |
Peeled and Ground | 20.00 to 50.00 | h10-h9-h11 | 3/4″ to 2.00″ |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Alloy 20 Bars 2000 mm up to 6000 mm available
50.0 | 6.0 |
65.0 | 9.0 |
55.0 | 7.0 |
45.0 | 5.0 |
70.0 | 10.0 |
60.0 | 8.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
130.0 | 30.0 |
100.0 | 25.0 |
160.0 | 35.0 |
120.0 | 40.0 |
Choose the right Alloy 20 Round Bar based on factors like corrosion resistance, strength requirements, and compatibility with your specific application environment.
The pressure rating of Alloy 20 Round Bar depends on factors such as size, temperature, and specific application conditions, typically determined through engineering calculations.
Yes, Alloy 20 Round Bar can be welded, offering excellent weldability with proper techniques.
You’ll typically find Alloy 20 Round Bars hard at work in critical systems that face harsh chemical exposure. They are the backbone of chemical processing plants, pharmaceutical manufacturing, and industrial food production equipment. They are also essential for constructing tanks, valves, and pumps that handle sulfuric acid, especially in environments where pitting and crevice corrosion are a concern. Essentially, wherever severe corrosion is a threat to productivity and safety, Alloy 20 provides a dependable, long-lasting solution.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
